What is a Lathe? A Comprehensive Guide to Machining and Components

What is a Lathe?

A Comprehensive Guide to Metal Turning

Have you ever wondered how screws, shafts, metal cylinders, or precision rotating components are manufactured? 2The answer almost always involves a lathe.

1. Defining the Lathe: The Core of Machining

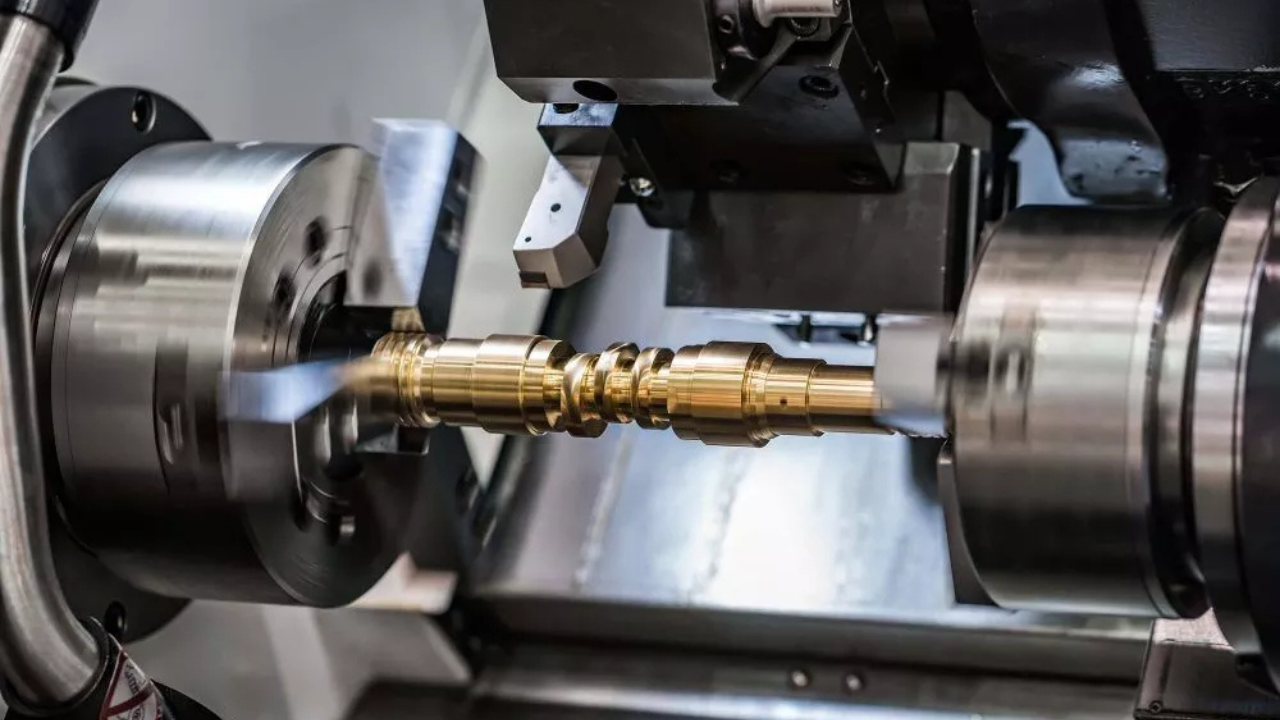

A lathe is a machine tool that shapes a workpiece by rotating it against a stationary cutting tool. It is primarily used for processing rotary parts (parts with rotational symmetry).

In simple terms: The workpiece rotates, and the tool cuts.

2. How Does a Lathe Work? (A Simple Analogy)

To understand the principle, imagine peeling an apple:

• You rotate the apple with one hand.

• You hold a knife in the other hand to slowly shave away the skin.

A lathe operates on this exact logic, but with industrial components:

• The "Apple" → A workpiece made of metal, plastic, or wood.

• The "Knife" → A specialized lathe cutting tool.

• The "Hand Rotation" → High-speed rotation powered by an electric motor.

This process transforms raw materials into smooth, precise, and dimensionally consistent parts.

3. Applications: What Can a Lathe Produce?

Lathes are the masters of cylindrical and symmetrical machining, creating parts such as:

• Shaft Components: Motor shafts, transmission shafts

• Threading: Industrial screws and nuts

• Geometry: Cylindrical and conical shapes

• Mechanical Parts: Sleeves, flanges, and bearing housings

Virtually every mechanical product in modern life relies on lathe-machined components.

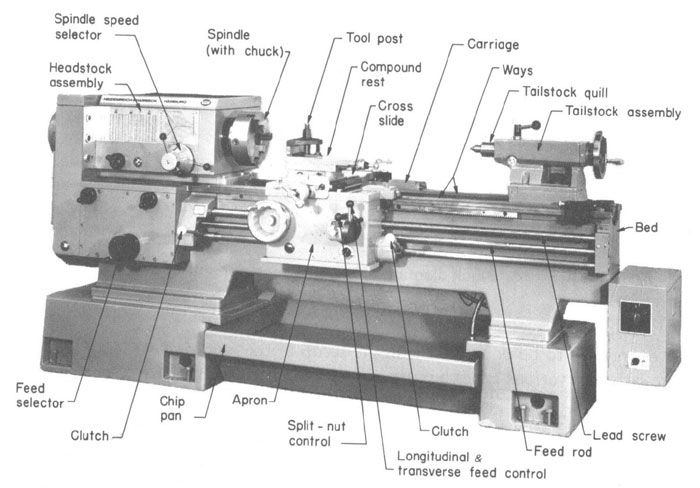

4. Detailed Structure of a Lathe

While the machinery may look complex, every part of a lathe is designed around three core principles: Stability, Rotation, and Cutting.

I. The Bed (The "Skeleton")

• Core Function: The bed determines the stability, precision, and longevity of the machine.

• It is the largest casting of the machine.

• All components are mounted directly onto it.

• It is engineered for high rigidity, minimal deformation, and superior vibration resistance.

II.

The Headstock (The "Power Center")

• Core Function: Responsible for providing the "Rotation."

• It houses the spindle, motor, and transmission mechanism.

• The workpiece is fixed to the spindle via a chuck.

• It controls the rotation speed and torque for different materials.

III.

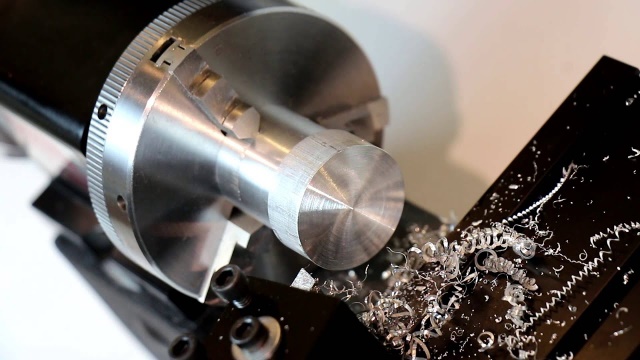

Spindle & Chuck (The "Grip")

• Core Function: Ensures the workpiece is "clamped securely."

• Spindle: Drives the workpiece rotation.

• Chuck: Firmly grips the workpiece (three-jaw and four-jaw are the most common).

• Secure clamping is critical for safety and precision.

IV.

Tool Post & Carriage (The "Arms")

• Core Function: Controls "How to cut."

• Carriage (Saddle/Apron): Moves longitudinally along the bed.

• Cross Slide: Provides transverse (lateral) feed.

• Compound Rest: Used for precision angular cutting.

• The tool is mounted on the tool post to follow a specific cutting path.

V. The Tailstock (The "Support")

• Core Function: Prevents long workpieces from "wobbling."

• Positioned at the opposite end of the bed.

• Essential for supporting long, slender workpieces to prevent bending or vibration.

VI.

Feed System (The "Automation")

• Core Function: Makes cutting uniform and labor-efficient.

• It automates the tool movement for consistent results.

• It is vital for precision thread cutting and batch production.

VII.

Control System (The "Brain")

• Manual Lathe: Relies on handwheels and operator experience.

• CNC Lathe: Operates via programmed computer instructions.

• CNC Advantages: High repeatability, complex part handling, and minimal human error.

VIII.

Cooling & Protection Systems

• Core Function: Enhances safety and tool durability.

• Cooling System: Lowers cutting temperatures to protect tools and surface finish.

• Safety Guards: Prevents metal chips from splashing towards the operator.

Summary Table: Lathe Components & Benefits

Common Types of Lathes

To meet various industrial needs, several specialized lathe types exist:

• Engine Lathe (Manual): Primarily human-operated; ideal for education and simple machining.

• CNC Lathe: Computer-controlled for high-precision, high-efficiency mass production.

• Vertical Lathe: Workpiece is mounted vertically; designed for large, heavy, disk-shaped parts.

• Wood Lathe: Specifically designed for shaping wooden products like table legs and crafts.

Why is the Lathe Essential to Industry?

As the saying goes: "As long as the world needs rotating parts, it will need lathes." Lathes are the foundation of manufacturing, and their precision determines the quality of the final machine. They are widely used in:

• Automotive & Aerospace

• Industrial Equipment & Automation

• Energy & Heavy Industry

Lathe vs. Milling Machine

Many beginners confuse these two machines, but the difference is simple:

• Lathe: Workpiece rotates, tool remains relatively stationary. Best for cylindrical parts.

• Milling Machine: Tool rotates, workpiece moves. Best for flat surfaces and complex contours.

Together, they form the "Golden Duo" of modern manufacturing.

Summary

The lathe is the critical equipment that makes materials "rotate" to be precisely shaped—an indispensable cornerstone of modern industry.
