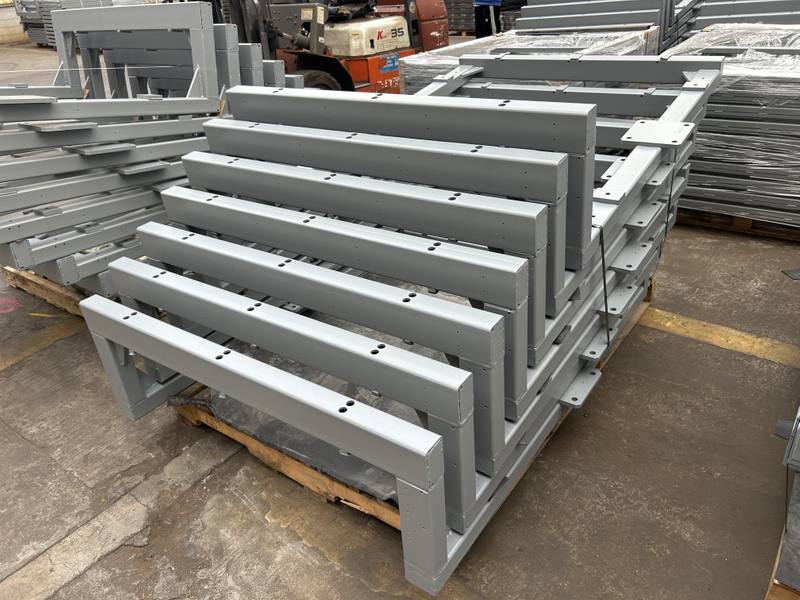

Battery Testing Equipment Motion Frame – Precision Welded Steel Structure (Robot Welding)

These custom-engineered welded steel frames are designed for use in battery testing equipment, serving as the core motion platform structure that supports dynamic, high-precision mechanical movements. Each frame is manufactured in our facility using robotic MIG welding, ensuring consistent weld quality, dimensional accuracy, and long-term structural stability.

The entire frame assembly is produced from high-strength steel profiles. After welding and machining, every piece undergoes surface anti-corrosion treatment to meet industrial-grade durability requirements. The final finish is a smooth, uniform protective coating, ensuring both functionality and long service life in laboratory and production environments.

Manufacturing Process

• Laser cutting for clean edges and accurate dimensions

• Robotic MIG welding for consistent seam quality

• CNC machining for mounting accuracy and fitment

• Surface anti-corrosion treatment and protective coating

Key Features

• Robotic Welding (Welding Robots)
  All critical joints are welded by automated robotic systems, ensuring repeatable quality, stronger joints, and improved appearance compared with manual welding.

• High Structural Strength
  Built with heavy-duty steel plates and rectangular tubes, suitable for supporting linear motion units, actuators, and precision testing mechanisms.

• Dimensional Accuracy
  CNC machining is applied after welding to guarantee mounting-hole alignment, parallelism, and flatness, enabling seamless integration with battery testing systems.

• Industrial-grade Surface Protection
  Components are treated with anti-rust coating and high-adhesion surface finishing to meet long-term operation requirements in testing labs and production lines.

• Customizable Design
  We can produce according to customer drawings, including special hole positions, brackets, motion modules, and structural reinforcements.

Typical Applications

✔ Battery testing equipment
✔ Motion control frameworks
✔ Automation equipment bases
✔ Testing and inspection machinery
✔ Precision mechanical support structures

Why Choose Us

With advanced laser cutting, robotic welding, CNC machining, and full surface coating lines, we offer a complete one-stop solution for metal structural parts. Our team ensures stable quality, fast delivery, and strict adherence to customer requirements.
