Boring Machines: The Key To Accurate Hole Machining in Large Structures

When Do You Really Need a Boring Machine?

Let's start with a very real-world scenario

You're standing in front of a part that is big, heavy, and expensive.
So heavy that it’s no longer a question of “Can we move it?”
—but “What does the overhead crane say?”

Then the customer adds one simple sentence:

“The hole position cannot be off.”

At that moment:

• The drill press goes quiet.

• The milling machine looks away.

• And the boring machine quietly steps forward.

Whenever large components, high-precision hole positions, and multi-hole alignment are involved,
the boring machine is usually the last — and the most reliable — option.

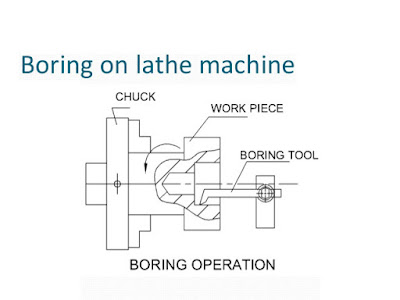

What Is a Boring Machine, Really?

Many people think a boring machine is used to “make holes.”
The truth is

A boring machine is not about making holes.
It's about making holes right.

Its core mission is simple:

To bring existing holes to the correct size, exact position, and precise geometric relationship.

In large welded frames, equipment bases, and box-type structures,
holes never exist on their own.
They determine whether bearings align, whether assemblies fit,
and whether the entire machine can run reliably over the long term.

And that’s exactly where a boring machine shines.

What Technical Problems Does a Boring Machine Solve?

In real engineering applications, boring machines are mainly used to solve the following challenges:

1. Hole Position Accuracy in Large Structures

After welding, large frames and heavy bases inevitably deform due to heat.
A boring machine is used to re-establish accurate assembly references.

2. Coaxiality and Positional Accuracy of Multiple Holes

Bearing bores, pin holes, and mounting holes must maintain strict positional relationships.
Boring ensures true alignment between holes.

3. Final Machining of Large-Diameter, High-Precision Holes

Especially suitable for large and deep holes with tight tolerances.

4. Machining Holes and Faces in a Single Setup

Reducing repeated clamping minimizes accumulated errors
and significantly improves overall assembly accuracy.

How Is a Boring Machine Different from Other Machine Tools?

Simply put:
A boring machine isn't overkill — it's purpose-built.

Typical Applications of Boring Machines

If your products include any of the following

• Large welded frames

• Automation equipment bases

• Construction and engineering machinery structures

• Energy, rail transit, and heavy equipment frames

Then a boring machine is usually not optional — it's essential.

Boring Machine Structure: Simpler Than It Looks

A boring machine can be summarized in one sentence:

A machine built for stability and accuracy.

Its structural goal is very clear:
To machine very large parts without vibration, deviation, or compromise.

Main Structural Components

1️ Bed (Base)

The foundation of the machine, usually made from high-strength cast iron or welded steel.

Functions:

• Supports the full machine weight and cutting forces

• Ensures overall rigidity and stability

• Provides reference surfaces for columns, tables, and floor plates

Large floor-type boring machines are often anchored directly to the foundation.

2️Column

The vertical support structure along which the headstock moves (Z-axis).

Key characteristics:

• Tall, box-type construction with very high rigidity

• Determines vertical positioning accuracy

• Directly affects vibration resistance during cutting

3️ Headstock

The functional core of the boring machine, housing the spindle, motor, transmission, and feed system.

Functions:

• Drives the boring bar or cutting tools

• Supports boring, milling, and facing operations

• Enables precise radial and axial feeds

Key point:
Spindle accuracy directly determines hole roundness and cylindricity.

4️ Boring Bar / Spindle

The cutting component that actually enters the hole.

Characteristics:

• Interchangeable lengths and diameters

• High rigidity to prevent deflection

• Supports fine tool adjustment for precise hole sizing

For deep or large holes, boring bar rigidity is critical.

5️ Table / Floor Plate

Table (Horizontal Boring Machine):

• Workpiece is mounted on the table

• Table moves in X and Y axes

• Suitable for medium-to-large components

Floor Plate (Floor-Type Boring Machine):

• Workpiece is fixed directly to the foundation

• Ideal for ultra-large and ultra-heavy structures

• The machine moves to the workpiece

6️ Feed System & Guideways

Typical axes include:

• X-axis: Table left/right

• Y-axis: Table forward/back

• Z-axis: Headstock up/down

• W-axis: Spindle axial extension (key for boring)

Guideway types:

• Box ways for heavy cutting and high load capacity

• Linear guides for speed and positioning accuracy

7️ CNC System

Modern boring machines are usually CNC-controlled.

The CNC system manages:

• Multi-axis motion coordination

• Tool paths and cutting parameters

• Accuracy compensation and repeat positioning

Common systems include FANUC, Siemens, and Mitsubishi.

Structural Summary (Engineering Perspective)

From a design standpoint, boring machines typically feature:

• Large overall dimensions with high structural rigidity

• A spindle-centric layout with fixed workpieces

• A strong focus on hole accuracy and geometric control

• Ideal suitability for post-weld precision machining of large structures

How to Choose Between Different Types of Boring Machines?

These machines are not about “which is more advanced,”
but about matching structure to application.

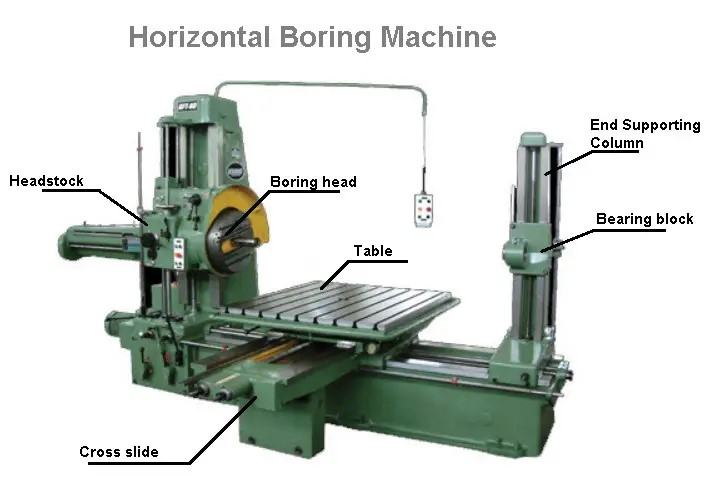

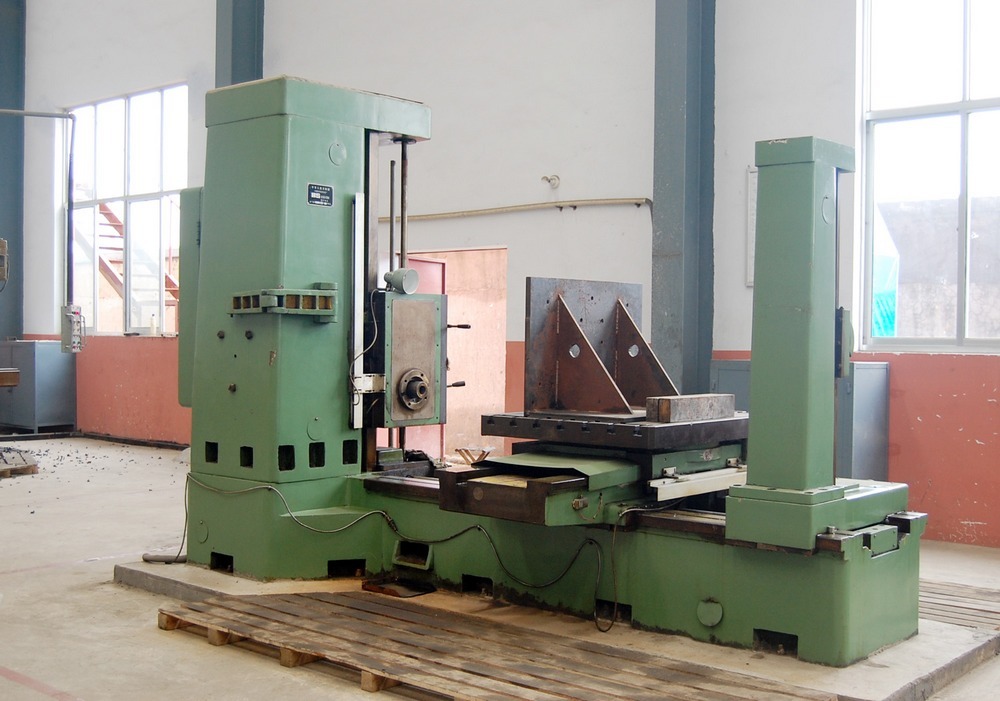

1. Horizontal Boring Machine

Structure:
Bed + Column + Headstock + Moving Table

Key Features:

• Horizontal spindle layout

• Workpiece fixed on the table

• Table moves in X/Y axes

• Spindle has W-axis extension

Advantages:

• Compact layout

• High positioning accuracy

• Ideal for multi-hole and coaxial machining

Limitations:

• Limited by table size and load capacity

Typical Applications:

• Medium-to-large frames

• Automation equipment bases

• Box-type parts with multiple precision holes

�� High cost-performance and the most commonly used type.

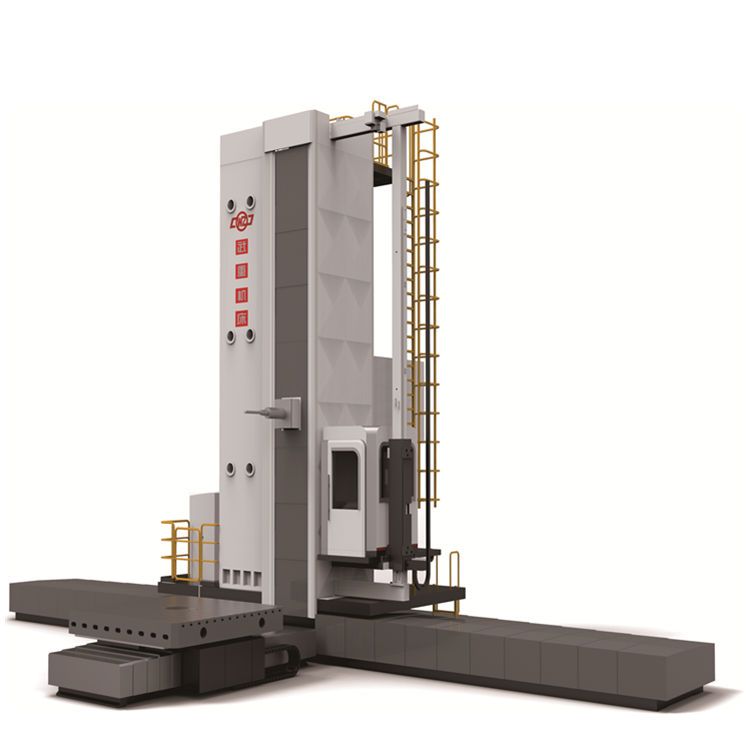

2. Floor-Type Boring Machine

Structure:
Floor plate / foundation + Column + Moving Headstock

Key Difference:

• The workpiece stays fixed, the machine moves

Advantages:

• No limits from table size or load

• Capable of extremely large and heavy structures

• Ideal for post-weld machining

Limitations:

• High foundation and installation requirements

• Higher setup and maintenance costs

• More complex motion planning

Typical Applications:

• Large welded frames

• Construction machinery bases

• Energy, rail transit, and heavy equipment structures

�� Almost irreplaceable for heavy welded structures.

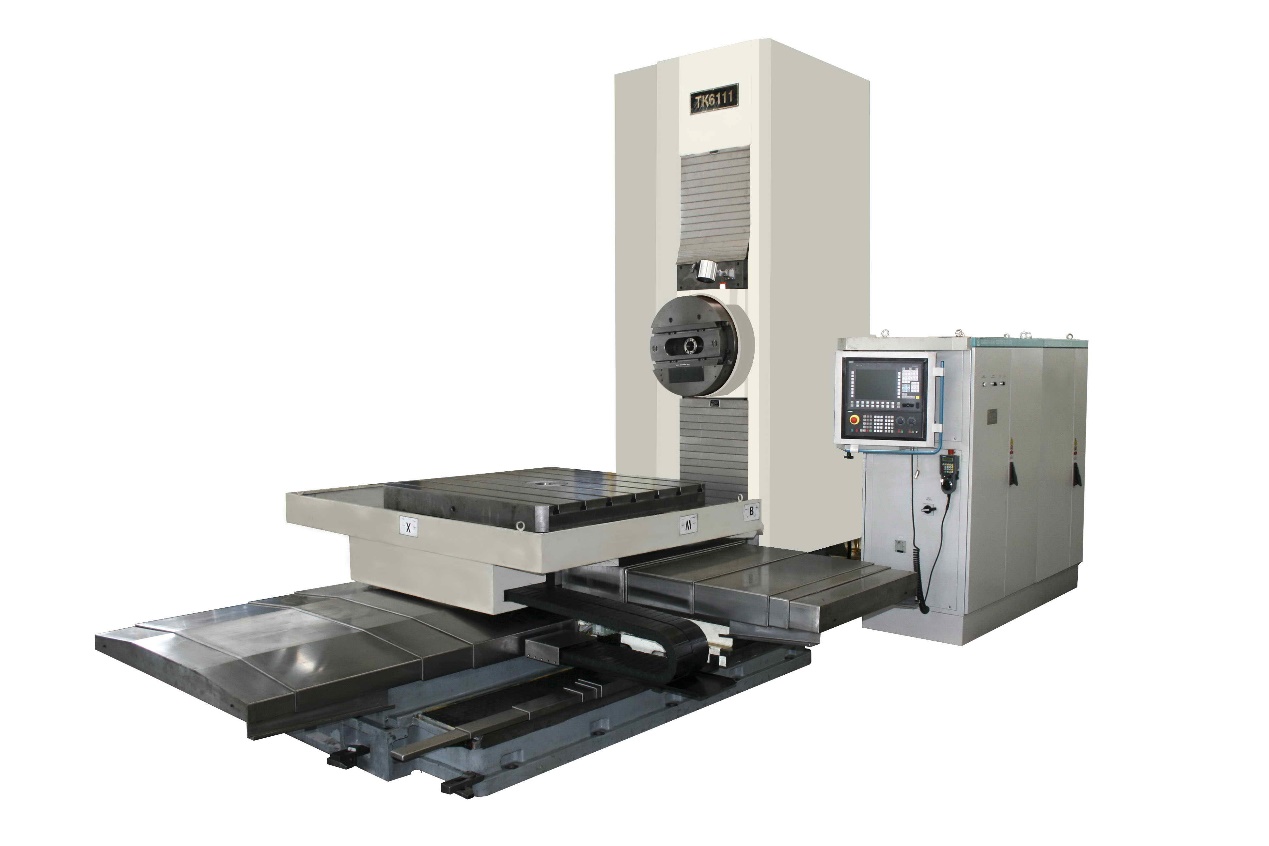

3. CNC Boring & Milling Machine

This is not a single structure, but a hybrid machine
based on horizontal or floor-type boring machines with added milling capability.

Upgrades Include:

• High-performance CNC systems

• Multi-axis control (X/Y/Z/W + rotary axes)

• Combined boring, milling, and facing operations

Advantages:

• Multiple processes in one setup

• Reduced re-clamping errors

• Ideal for complex hole systems and surfaces

Limitations:

• Higher machine cost

• Higher programming and operator skill requirements

Typical Applications:

• High-precision equipment bases

• Parts requiring holes + planes + mounting surfaces

• High-end automation and inspection equipment

�� Designed for applications demanding both accuracy and efficiency.

Quick Comparison Summary

The Core Logic of Machine Selection (Very Important)

From an engineering standpoint, it can be summed up in three lines:

Size and weight determine whether a floor-type machine is needed
Precision and hole relationships determine whether boring is required
Complexity and efficiency determine whether CNC boring-milling is the right choice
