• High-rigidity welded steel structure ensures machining stability
• Stress-relief treated body for long-term dimensional accuracy
• Precision machined guideway mounting surfaces
• Suitable for high-speed linear guides, ball screws & gantry systems
• Industrial-grade anti-corrosion paint coating

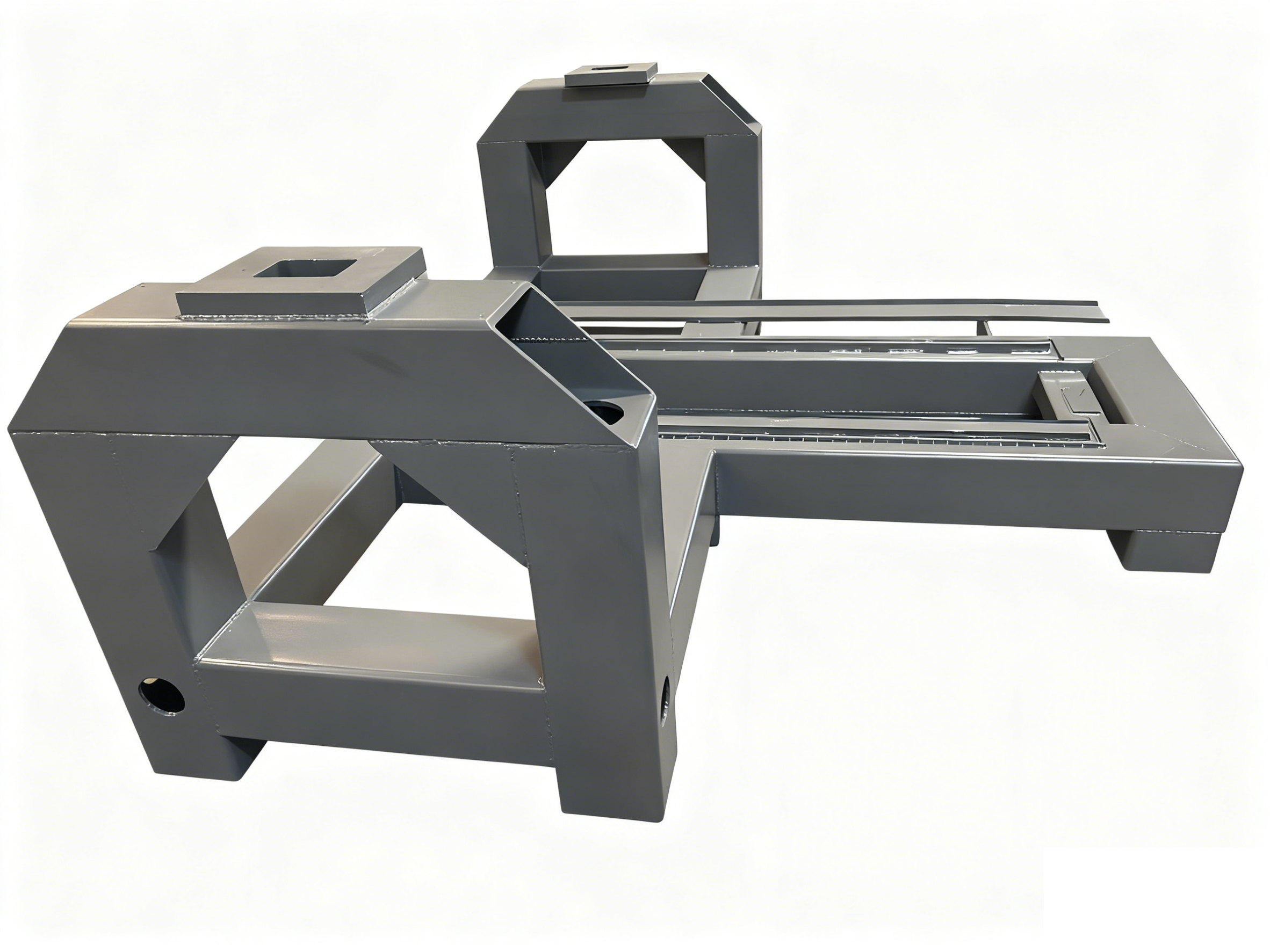

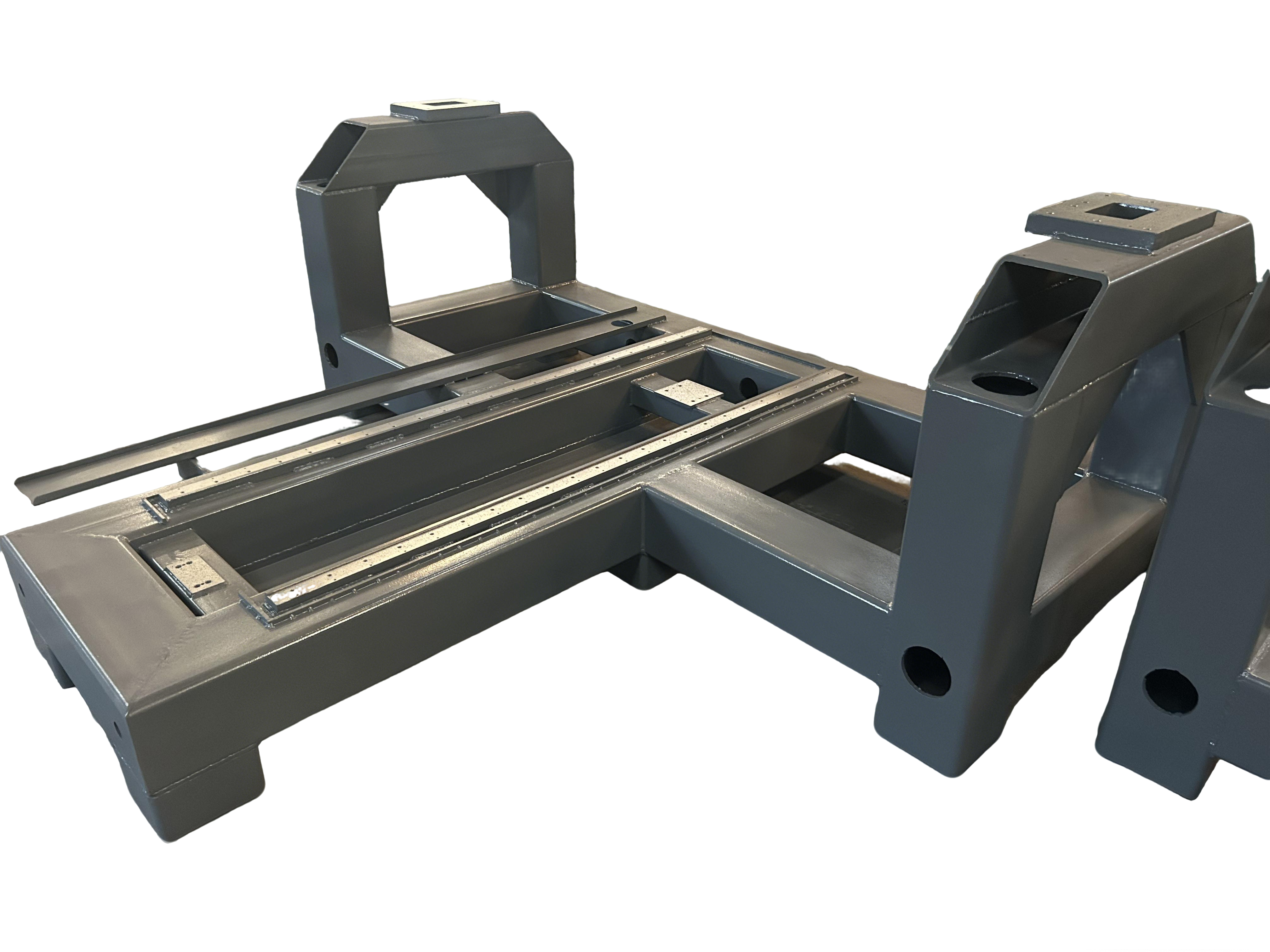

This CNC machining center main frame is engineered for high-precision industrial equipment.
Constructed from thick-wall steel plates and full-penetration welding, the frame provides exceptional rigidity and vibration resistance—critical for high-accuracy CNC machining applications.
After welding, the entire structure undergoes stress-relief heat treatment to minimize deformation, followed by precision CNC machining on all functional surfaces, ensuring the installation accuracy of linear rails, ball screws, and spindle columns.
Heavy-duty welded steel construction
Delivers outstanding stiffness and load-bearing performance.
Stress-relief heat treatment
Ensures long-term stability and minimizes structural deformation.
Precision-machined mounting interfaces
Guideways and screw seats are CNC-milled to ±0.01–0.02 mm accuracy.
Optimized mechanical structure
Designed for vertical, horizontal, and gantry-type machining centers.
Industrial-grade protective coating
Thick paint layer improves corrosion resistance and surface durability.
CNC machining centers
Industrial automation equipment
Precision positioning systems
Customized machine tool frames
Gantry/moving-column machining structures
We support OEM / ODM, including:
Custom dimensions
Additional steel reinforcements
Machining process optimization
Surface treatment options (spray paint, powder coating)
